CMM Modular Fixturing Elements
CMM Fixturing Elements

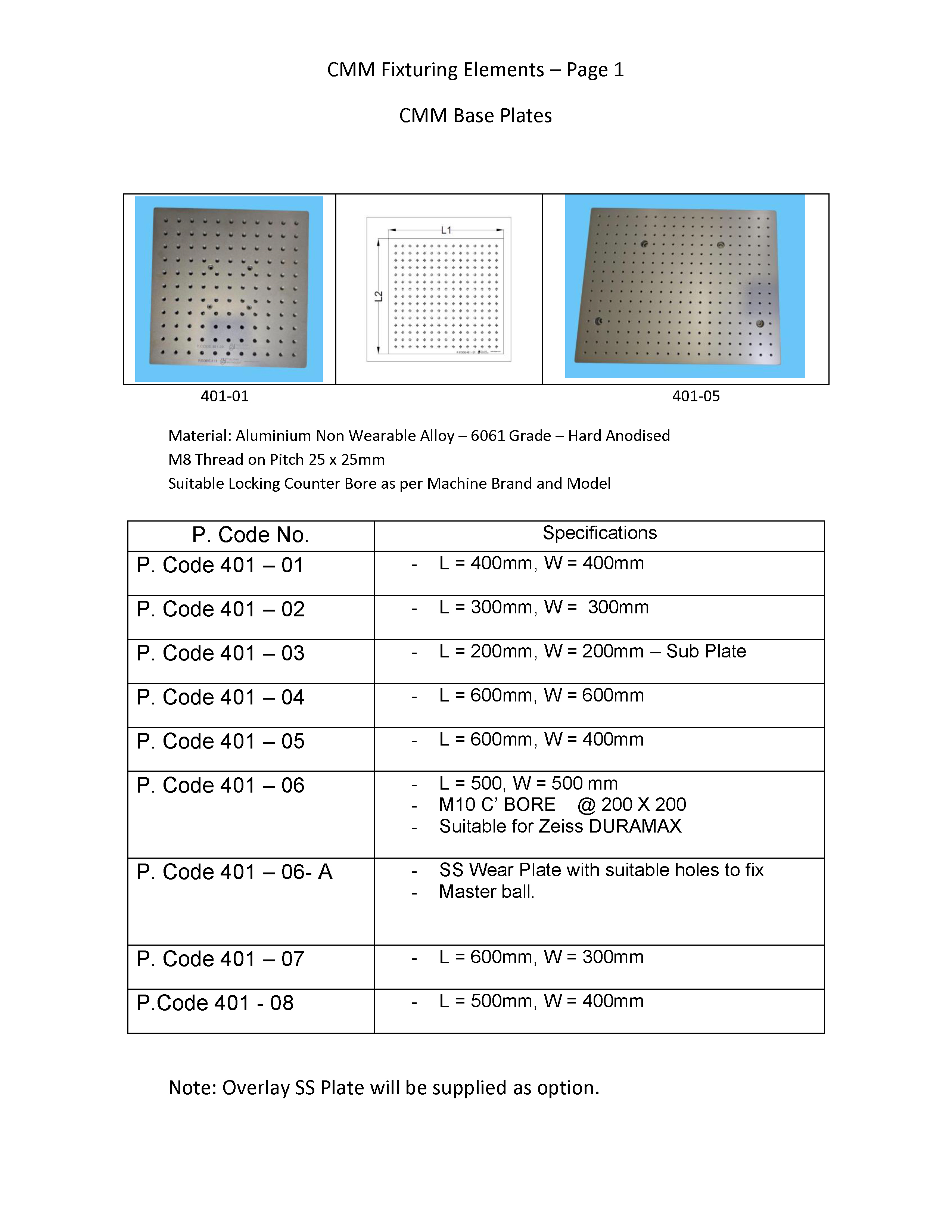

CMM fix base plate 600 X 600, 400 X 400, 300 X 300 with M8 helicoil spring inserts with reference slot; overview of fixturing elements
CMM fixture base plate 400 X 400 with fixture plate for cylinder block
CMM fixture base plate 400 X 400 with fixture setup for brake Master cylinder body
CMM fixture base plate 400 X 400 with fixture plate for cylinder head
CMM fixture base plate 400 X 400 with fixture plate for propeller shaft coupling
CMM fixture base plate 400 X 400 with fixture setup for Steering Column Housing

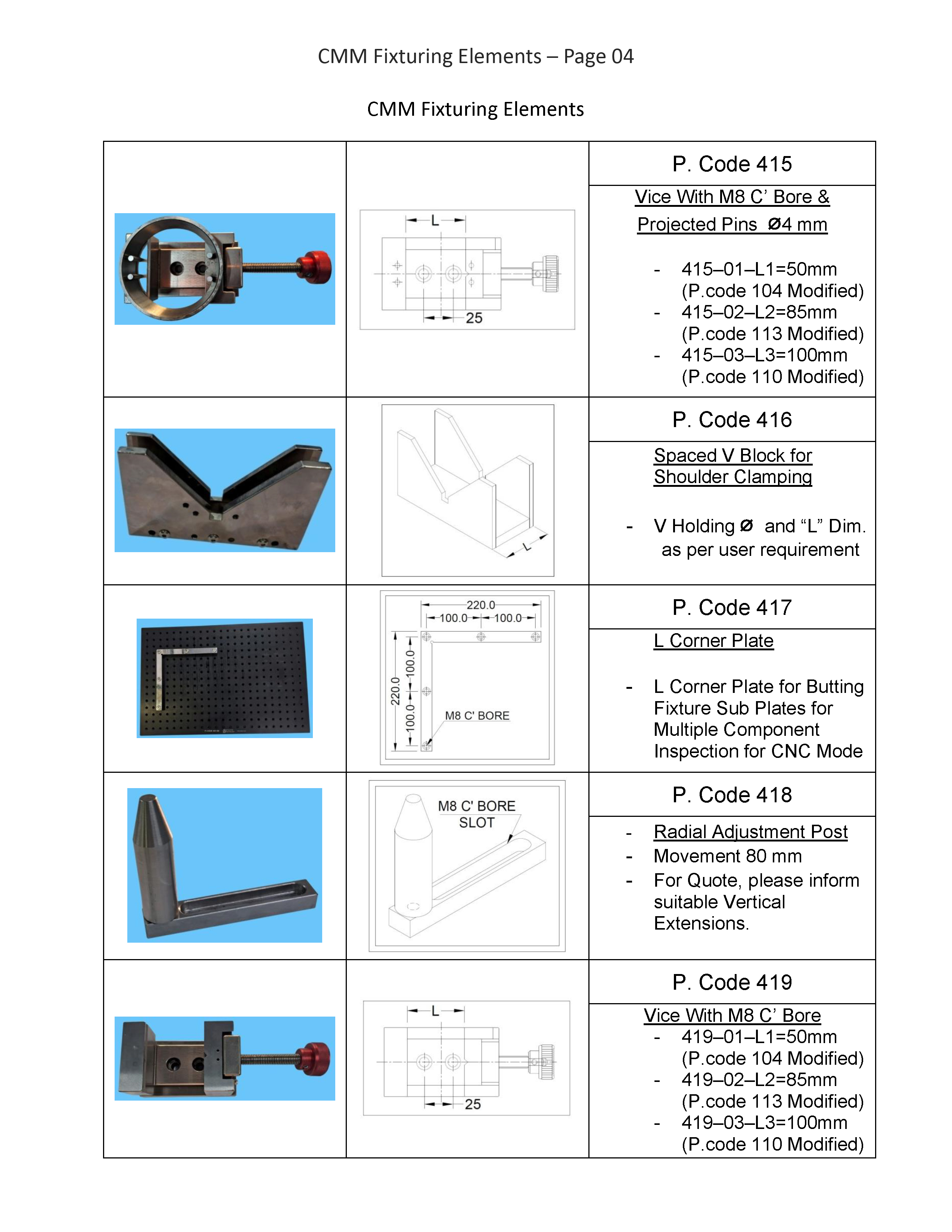

Vice with dowel pins for bearing inner race and outer race

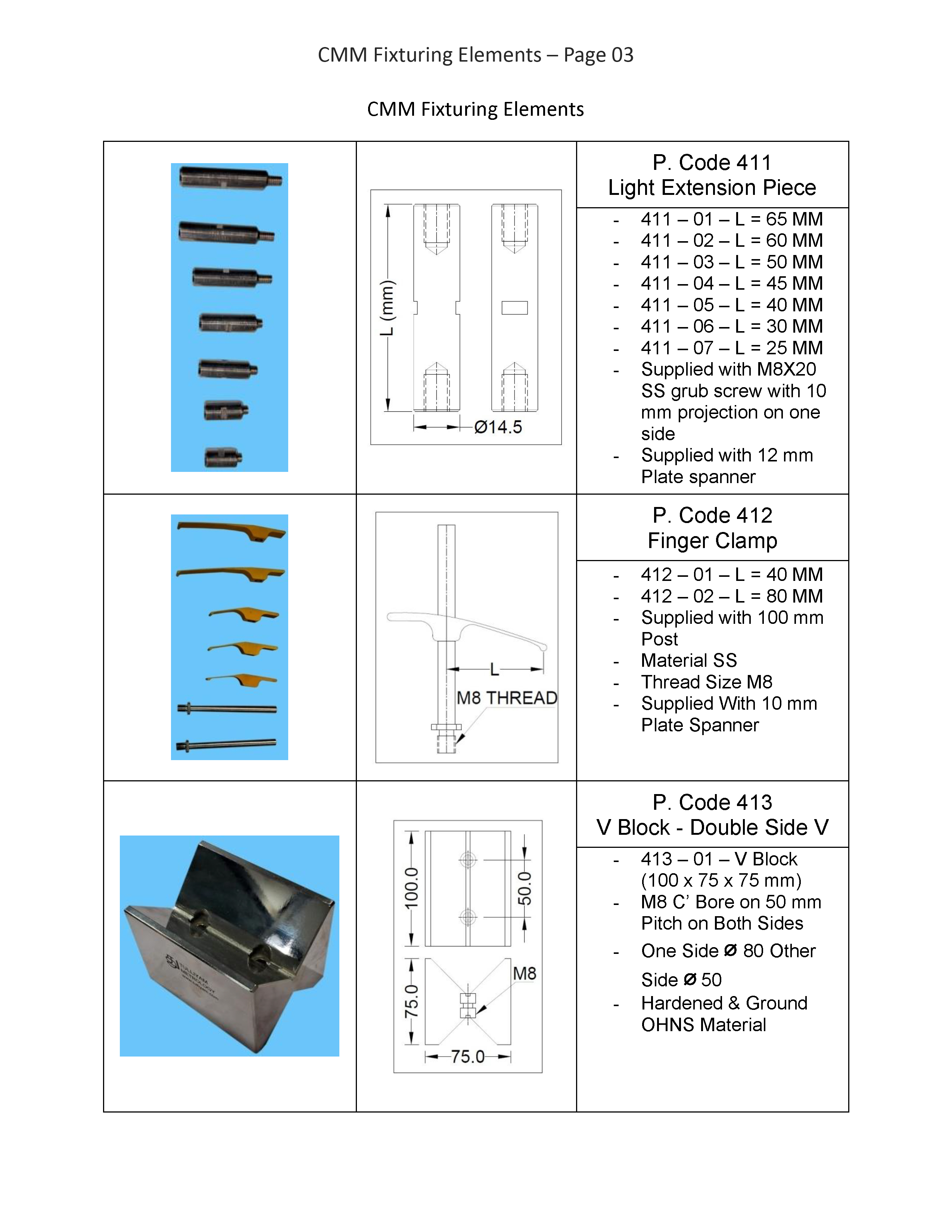

Soft finger clamp with adjustable base
400 X 400 base with fixture setup for FIE pump Housing
